Slide HIM MARINE

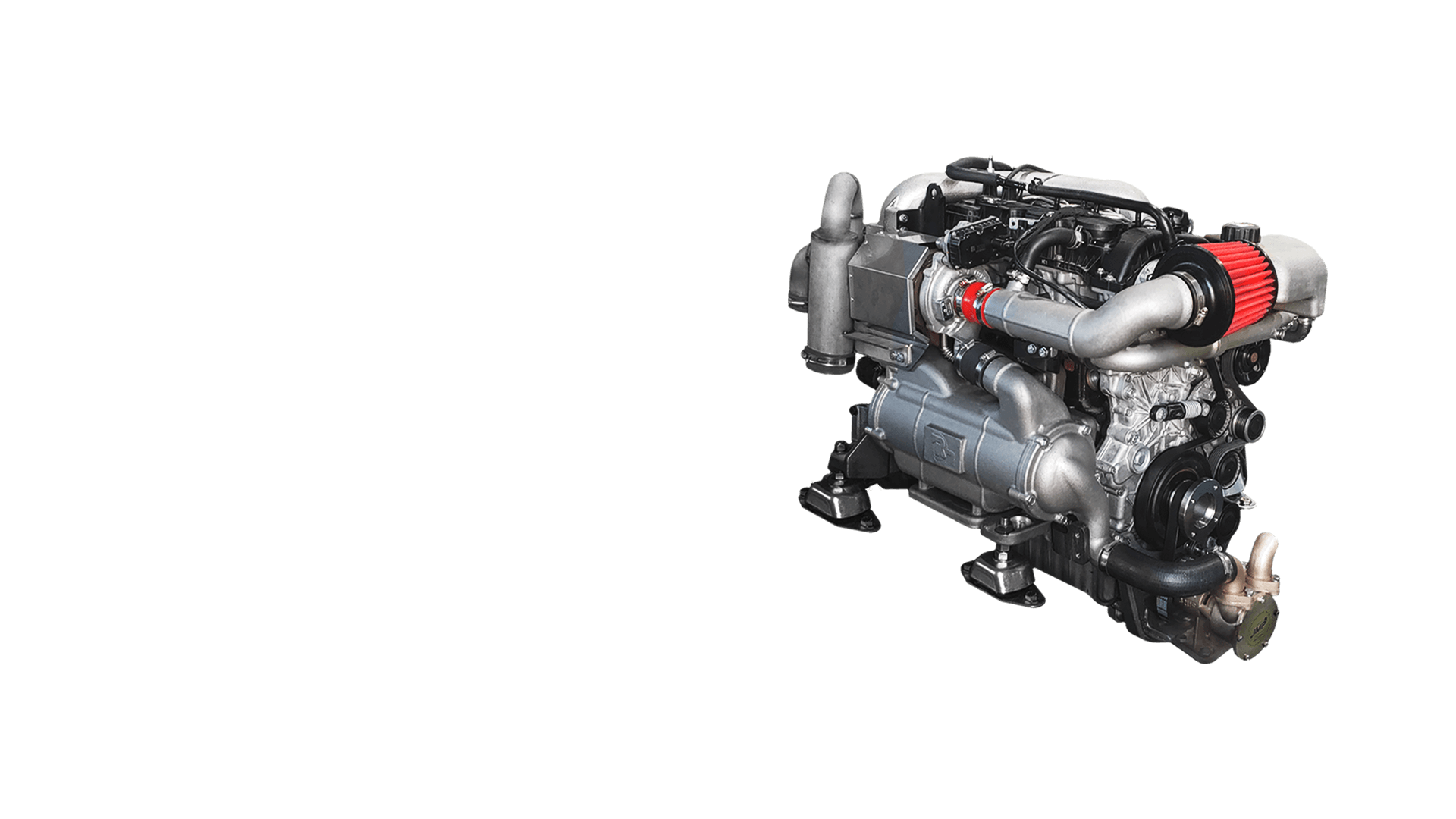

DIESEL ENGINE

KMD22 SERIES

It’s excellent cooling performance by applying a cross-flow type water jacket, and consist of  Common Rail Direct Injection system (CRDi), 2.2L with 175-220 HP as a reliable engine We implemented an engine with an optimized design, Quiet and fuel efficient.

Engine Model KMD22A
Rating Output 175 HP
rpm 4,000 rpm
Type 4-Stroke, 16-Valve, DOHC
Configuration In-Line 4 Cylinder
Cylinder Bore 86.2 mm
Stroke 92.4 mm
Swept Volume 2,157 cc (2.2 Liters)
Compression Ratio 15.5 : 1
Cooling Water cooling
Aspiration TCI-VGT (Electric), Inter cooled
Fuel Injection System Common-Rail, Direct Injection (CRDi)
Overall (L×W×H) 925x813x791
Weight (dry) 310 kg
